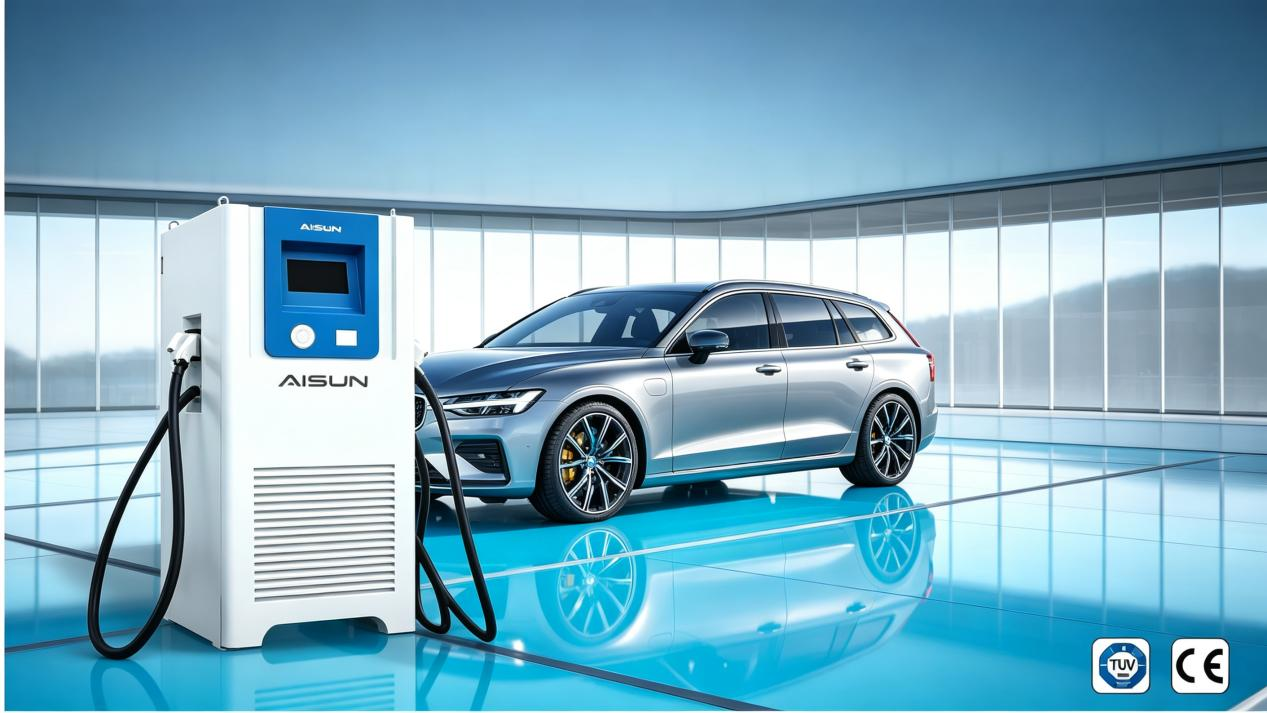

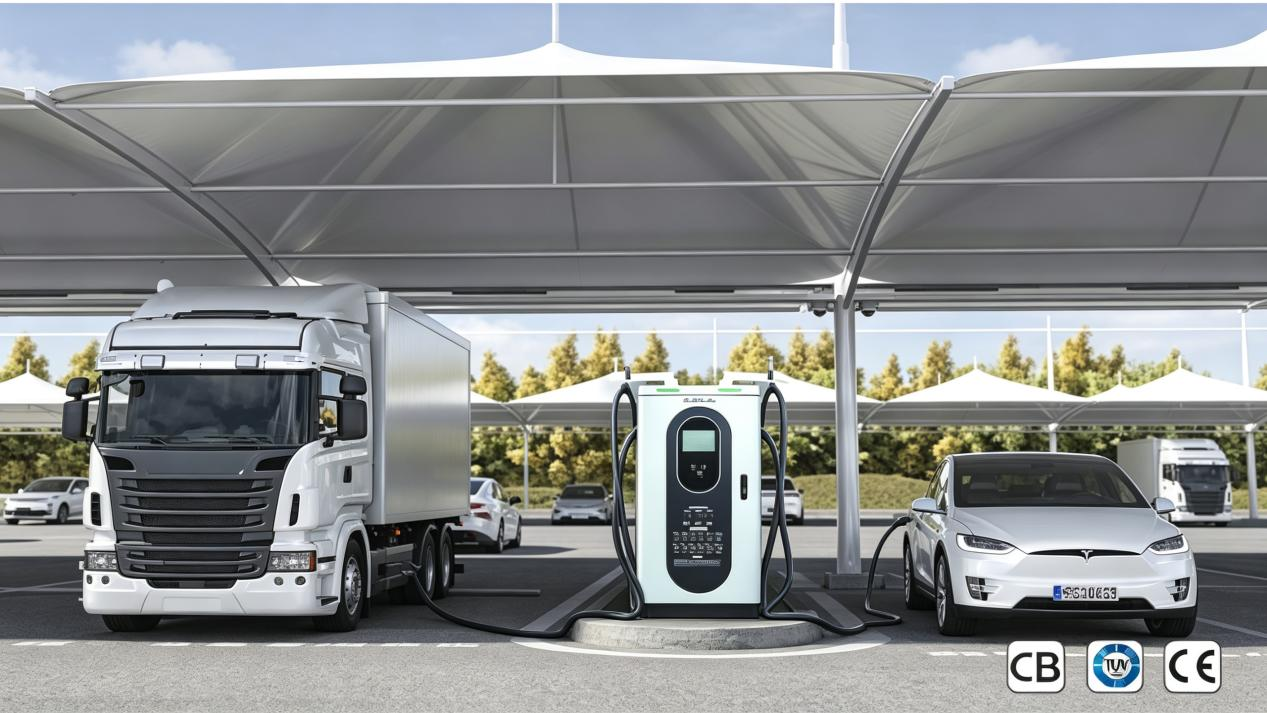

This series of DC EV charging station covers multiple power specifications ranging from 80KW to 240KW. Featuring a dual-gun design, it can charge two vehicles simultaneously. Equipped with intelligent temperature control and a multi-layer safety protection system, it is compatible with mainstream electric vehicles. Suitable for public charging stations, commercial parks and other scenarios, it delivers stable and reliable performance to meet the demands of international operation.
Model | EVSED80KW‑D2‑EU | EVSED120KW‑D2‑EU | EVSED160KW‑D2‑EU | ||
Input voltage | 3/N/PE,400Vac±15% | ||||
Grid frequency | 50/60Hz | ||||
Max input current | 160A | 230A | 310A | ||
Standby power consumption | <45W | ||||
Output power | 80KW | 120KW | 160KW | ||
Output voltage | 200-1000VDC | ||||
Max output current | 250A | ||||
Charging efficiency | ≥0.95 | ||||
EVSE-Vehicle protocol | DIN70121, ISO15118 | ||||
Protection | Leakage current protection, over/under voltage protection, over-current protection, short-circuit protection, surge protection, ground protection, emergency stop protection, over-temperature protection | ||||
User interface | |||||
Display | 10.1 inch LCD display with touch panel | ||||
Charging mode | RFID card swipe charging/password charging/QR charging/appointment charging/VIN code charging | ||||
Supported languages | English (other languages require custom development) | ||||
Firmware upgrade | OTA upgrade | ||||
OCPP | OCPP1.6J | ||||
Internet | 4G/WIFI/Bluetooth/Ethernet | ||||
Mechanical data | |||||
Dimension (L*W*D) | 1070mm*525.5mm*1597mm | ||||
Plug length | Default 5m | ||||
Cable specifications | 4*50mm²＋1*35mm²(4:L1,L2,L3,N;1:PE) | ||||
Charging plug | CCS2 | ||||
Installation | Floor-standing | ||||
Weight | 304KG | 321KG | 338KG | ||
Environment | |||||
Ingress protection | IP 54 | ||||
Working temperature | -30℃～+50℃ | ||||
Humidity range | 5%-95% (non-condensable state) | ||||
Altitude | <2000 meters | ||||
Cooling-down method | forced air cooling | ||||
Noise | <75dB (distance of 1 meter /25℃, full power output) | ||||
Certificate | CE & CB by TUV | ||||
Model | EVSED200KW‑D2‑EU | EVSED240KW‑D2‑EU |
Input voltage | 3/N/PE,400Vac±15% | |
Grid frequency | 50/60Hz | |
Max input current | 380A | 460A |
Standby power consumption | <45W | |
Output power | 200KW | 240KW |
Output voltage | 200-1000VDC | |
Max output current | 250A | |
Charging efficiency | ≥0.95 | |
EVSE-Vehicle protocol | DIN70121, ISO15118 | |
Protection | Leakage current protection, over/under voltage protection, over-current protection, short-circuit protection, surge protection, ground protection, emergency stop protection, over-temperature protection | |
User interface | ||
Display | 10.1 inch LCD display with touch panel | |
Charging mode | RFID card swipe charging/password charging/QR charging/appointment charging/VIN code charging | |
Supported languages | English (other languages require custom development) | |
Firmware upgrad | OTA upgrade | |
OCPP | OCPP1.6J | |
Internet | 4G/WIFI/Bluetooth/Ethernet | |
Mechanical data | ||
Dimension (L*W*D) | 1070mm*525.5mm*1597mm | |
Plug length | Default 5m | |
Cable specifications | 4*50mm²+1*35mm²(4:L1,L2,L3,N;1:PE) | |
Charging plug | CCS2 | |
Installation | Floor-standing | |
Weight | 355KG | 372KG |
Environment | ||
Ingress protection | IP 54 | |
Working temperature | -30℃～+50℃ | |
Humidity range | 5%-95% (non-condensable state) | |
Altitude | <2000 meters | |
Cooling-down method | forced air cooling | |
Noise | <75dB (distance of 1 meter /25℃, full power output) | |
Certificate | CE & CB by TUV | |
