The battery swap cabinets include 5-bay, 8-bay, 10-bay, 12-bay, and 15-bay versions. These five models are highly consistent in terms of core parameters and functions: the input voltage is AC 180-265V, charging efficiency is ≥92%, and the output voltage is DC 45-88V with support for multiple specifications. They all have 4G connectivity, MQTT protocol communication, and automatic charging and stopping features. For safety, they use galvanized sheet material, have an IP54 protection rating, and are equipped with short-circuit, lightning, leakage, and over-temperature protection, along with standard aerosol fire extinguishing devices and smart cooling fans. The display screens are all 7 inches (1280×800), showing the battery status of each slot in real time.
Product Introduction

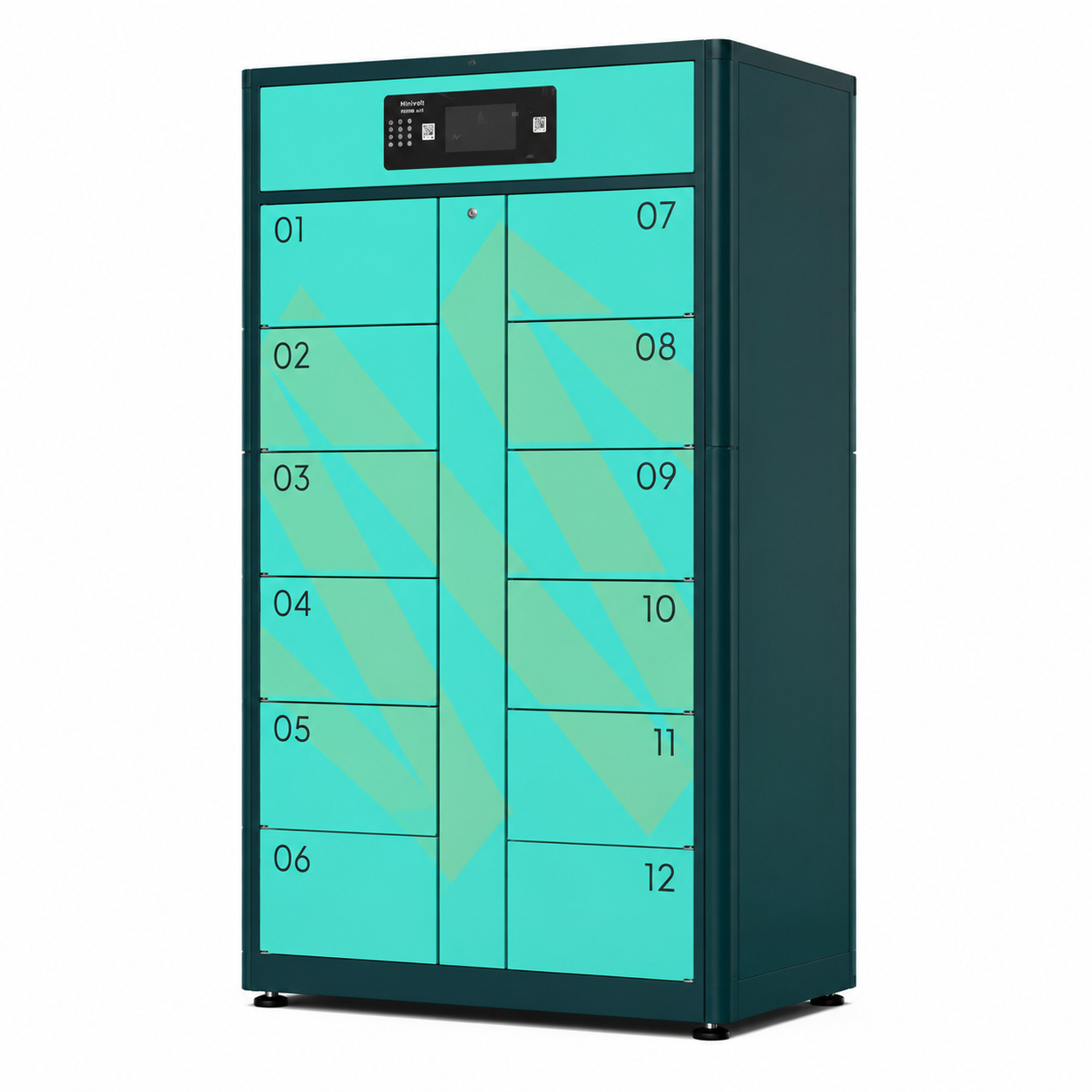

Product Name | 12-Compartment Charging & Swapping Cabinet | |
Cabinet Dimensions | 511.7*948*1736mm (D*W*H) Subject to final product | |
Compartment Dimensions | 220*320*500mm (H*W*D) | |
Charging Parameters | Input Voltage | AC 180-265V |
Charging Method | Soft Link (Includes 485 Communication) | |
Static Power | Static power approx. 20W | |
Max Cabinet Power | >9600W | |
Charging Efficiency | ≥92% | |
Power Distribution Method | Single-phase AC220V, 10mm² single-core wire | |
Output Voltage | DC45-88V (Optional 48V/60V,72V) | |
Max Output Current | 15A Optional | |
Max Charging Power | 800W Single Compartment (Optional 1300W) | |
Battery Compartment Indicator | Green light: Empty slot, Red light: Battery present | |
Functional Design | Voice Broadcast | Supported |
Networking Method | 4G Full Netcom | |
External Communication Protocol | Based on MQTT protocol | |
Charging Mode | Auto charge, Auto ID, Auto stop when full | |
Smoke/Water Immersion Detection | Smoke/Water Immersion protection | |
Safety Design | Material | Galvanized sheet, Eco-friendly, Fireproof, Explosion-proof |
Waterproof Rating | IP54 | |
Safety Functions | Short Circuit Protection | Whole Unit |
Lightning Protection | Whole Unit | |
Leakage Protection | Whole Unit | |
Over-temperature Protection | Unit equipped with temp sensor, has over-temp protection | |
Fire Extinguishing Device | Standard aerosol fire extinguisher per compartment | |
Built-in Fan Auto Cooling | Cabinet auto controls cooling fans based on internal temp | |
HD Display Screen | Size | 7-inch display |
Resolution | 1280×800 | |
Screen Function | Charging status and battery level of each compartment | |
